Product Details
＋

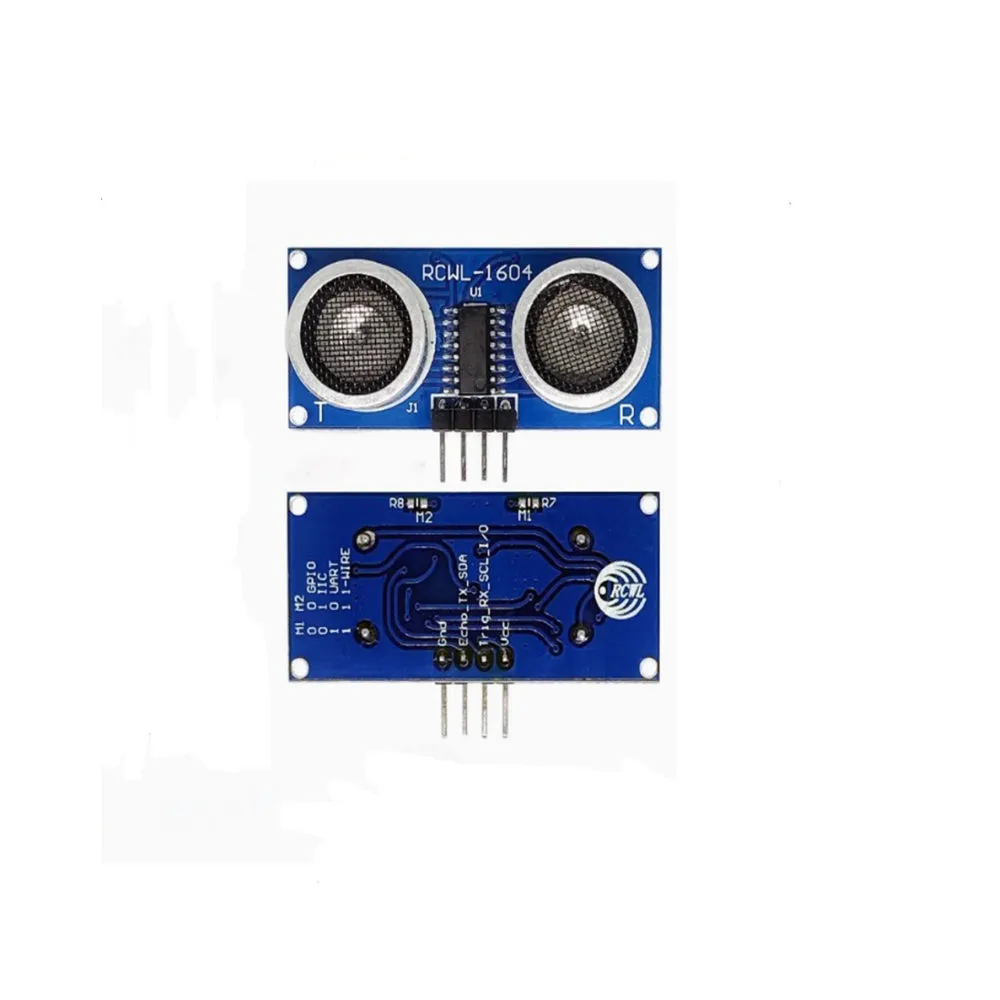

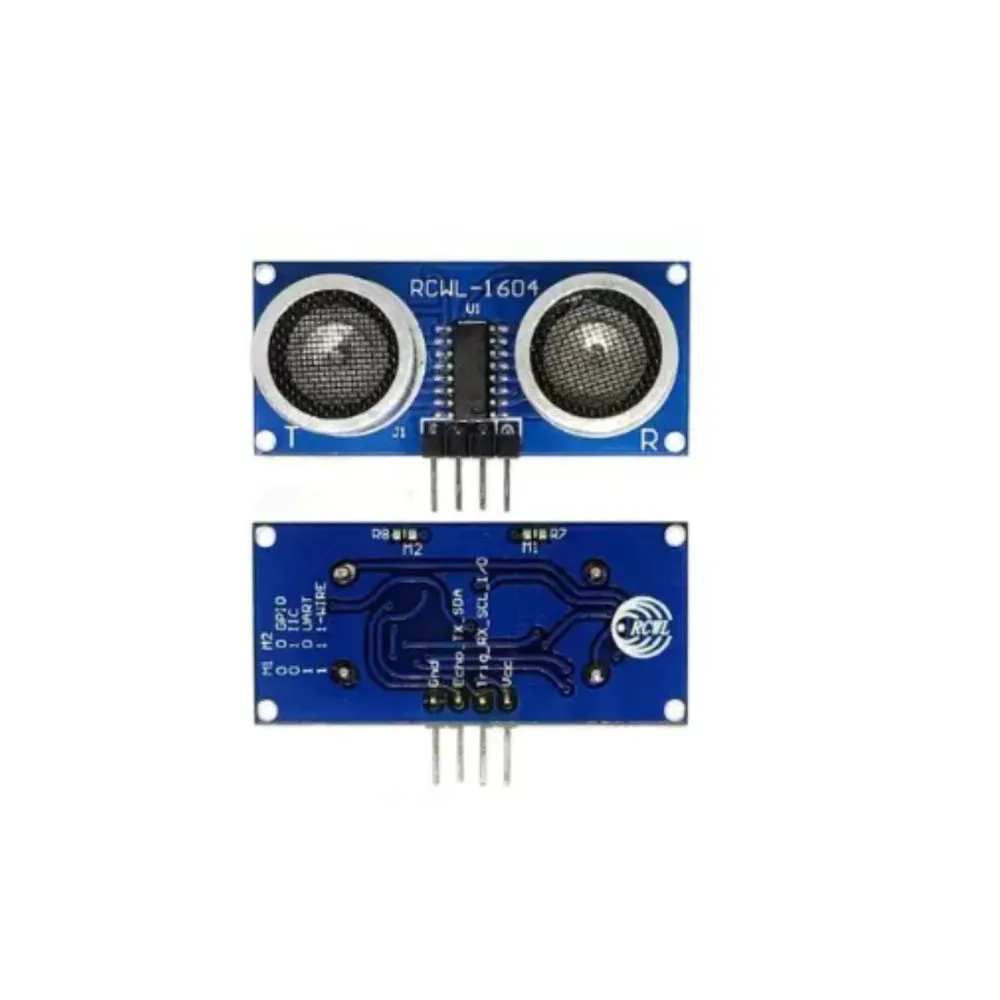

Ultrasonic Distance Sensor Module
The RCWL-1604 Ultrasonic Sensor is a versatile and widely used component in the field of electronics and robotics. This sensor utilizes ultrasonic waves to measure the distance to an object, making it ideal for distance measurement, object detection, and obstacle avoidance. Its ease of use and reliability make it a popular choice for hobbyists, educators, and professionals.Technical Details
- Model: RCWL-1604
- Operating Voltage (VDC): 5
- Frequency: 40 kHz
- Measurement Range: 2 cm to 4 m
- Resolution: 0.3 cm
- Connection Type: 4-pin (GND, Echo, Trig, VCC)
Features
- High accuracy
- Wide detection range
- Compact and lightweight
- Low power consumption
- Simple interface
- Real-time feedback

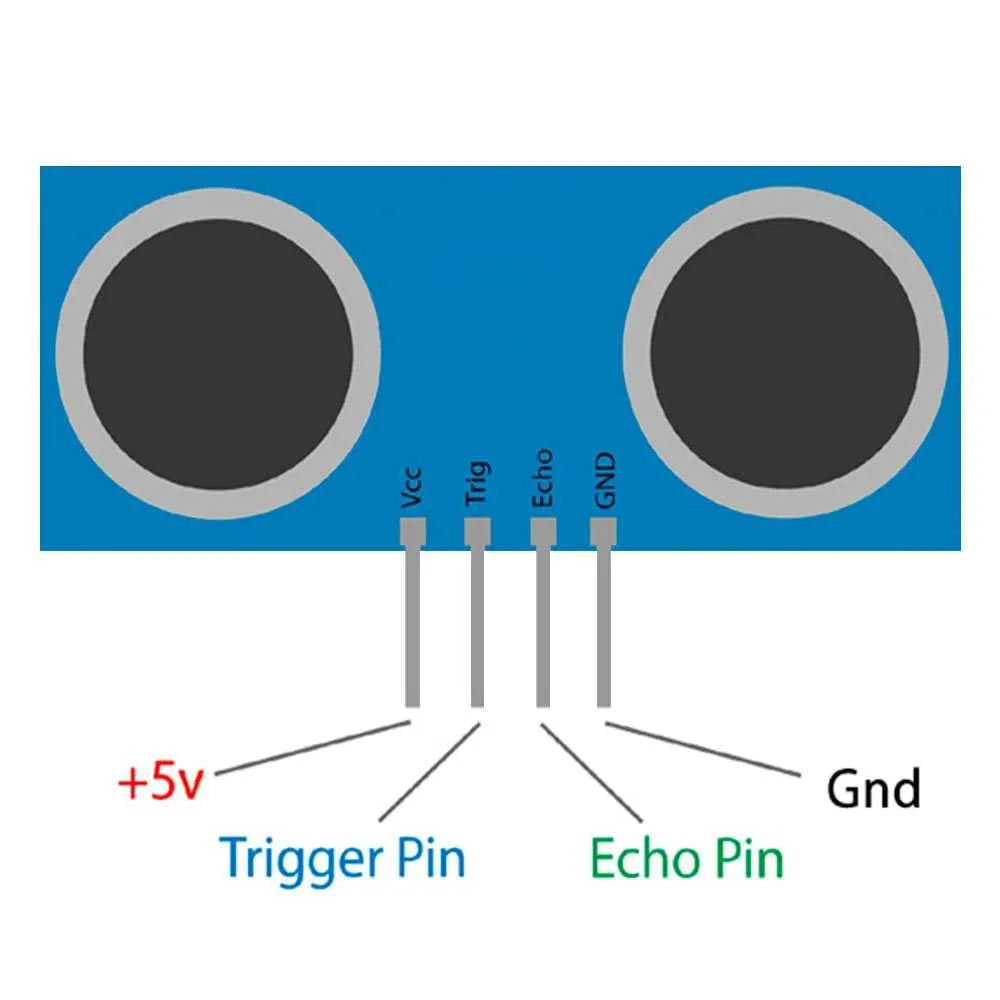

Pin Description:
- GND: Ground connection
- ECHO: Echo pin for receiving measurement signal
- TRIG: Trigger pin for initiating measurement
- VCC: Power input ( 5V or 3.3V)
Applications :
- Distance Measurement: Accurately measures the distance between the sensor and an object, which is useful in various automation and control systems.
- Obstacle Avoidance: Used in robotics to detect and avoid obstacles, ensuring smooth navigation.
- Object Detection: Ideal for security systems, automated doors, and other systems requiring object presence detection.
- Level Measurement: Measures liquid or material levels in containers, useful in industrial and agricultural settings.
Integration with Arduino ultrasonic Sensor
Sample Code
Integration with Raspberry Pi
Sample Code
Physical Attributes
- Dimensions: 45 x 20 x 15
- Weight (gm): 8
Package Includes

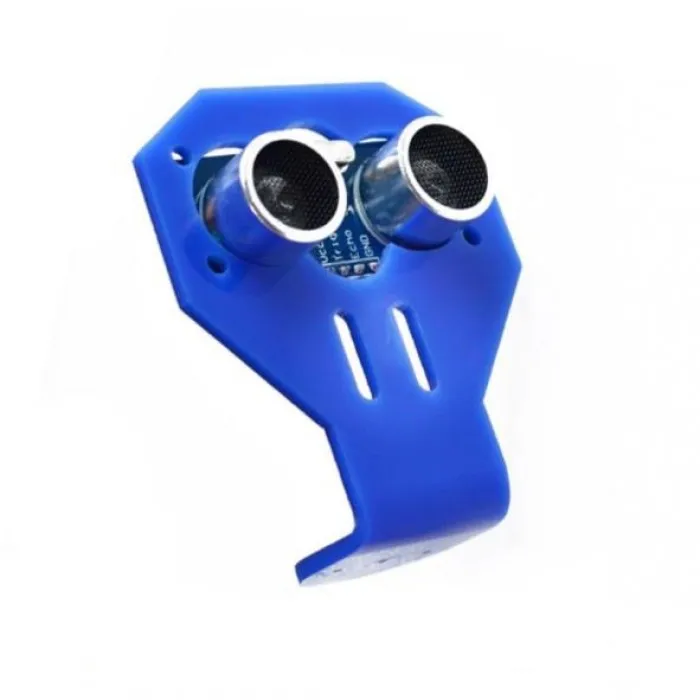

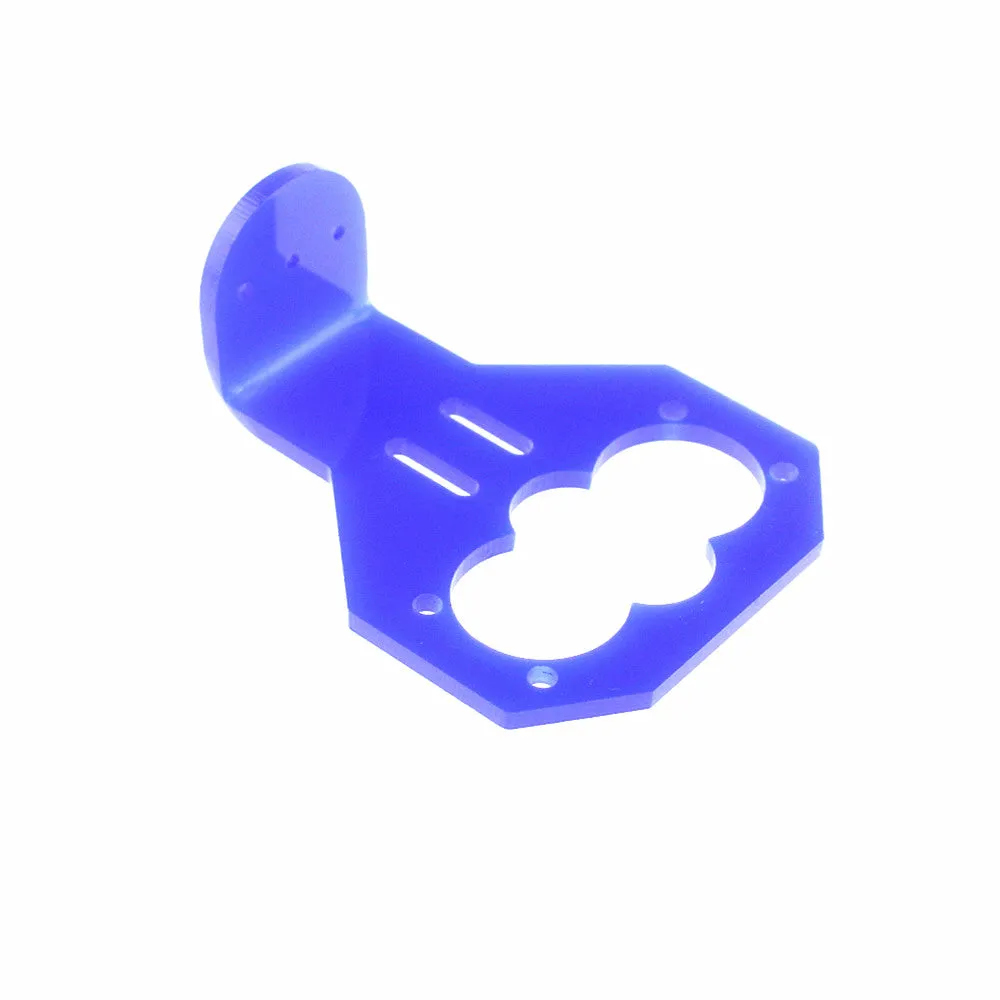

- 1 x Ultrasonic range finder Distance sensor with cartoon Ultrasonic Sensor mounting Bracket
