Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 1049049 |
| Body Style | Rectangular |
| Color Emitted | Red |
| Connection Type | M12 4-Pin |
| Dimensions | 12.2 mm x 52.2 mm x 23.6 mm |
| Housing Material | VISTAL Plastic |
| IP Rating | IP66 ; IP67 ; IP69K |
| Light Source | PinPoint LED (Average service life: 100,000 h at TU = 25 °C) |
| Measurement Range | 0.02-0.35 m |
| Operation | Light-ON |
| Output | PNP |
| Sensing Mode | Background Suppression |
| Series | |
| Supply Voltage | 10-30 VDC |
| Type | Reflective Sensors |
| Wave Length | 650 nm |
Overview
Performance inside VISTAL housing

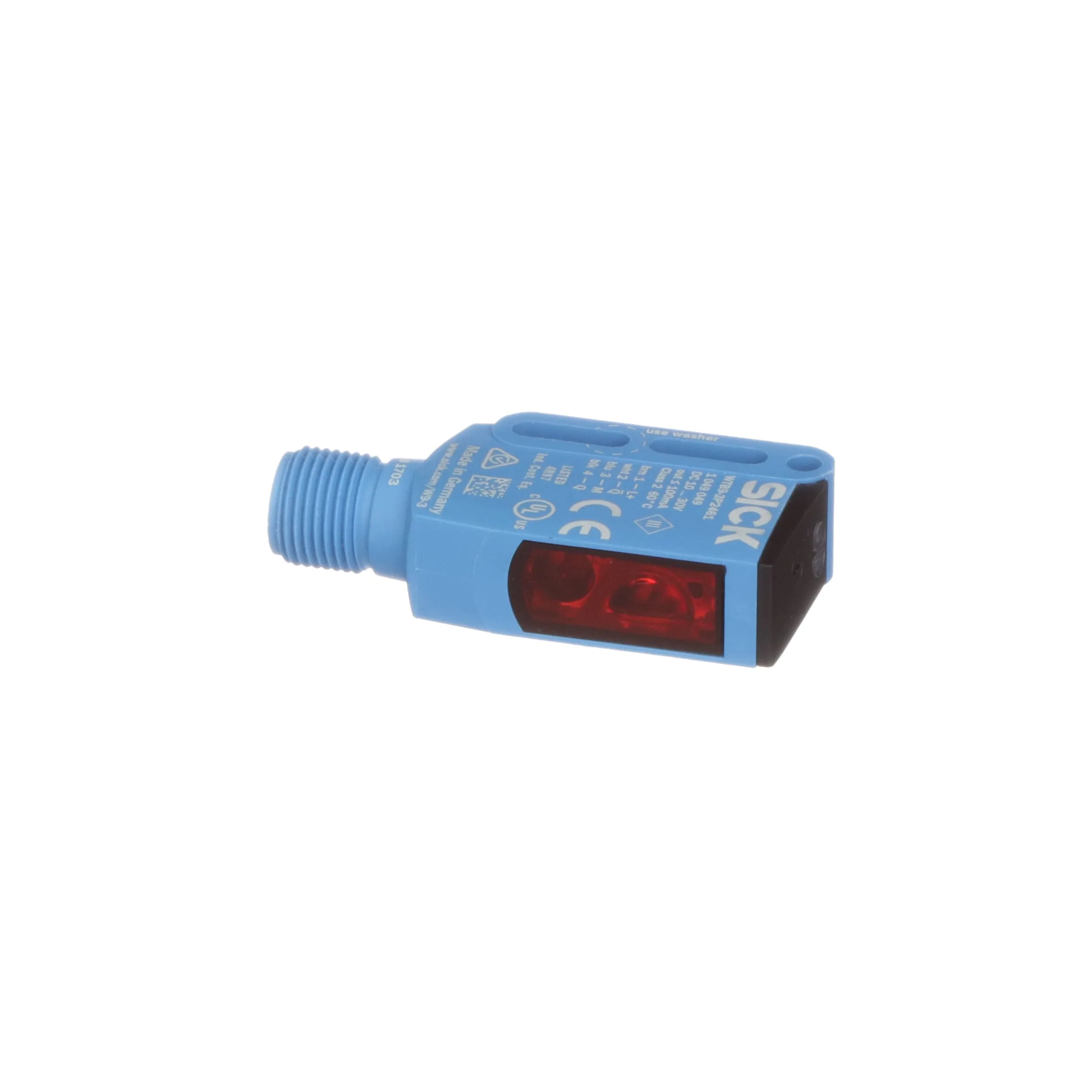

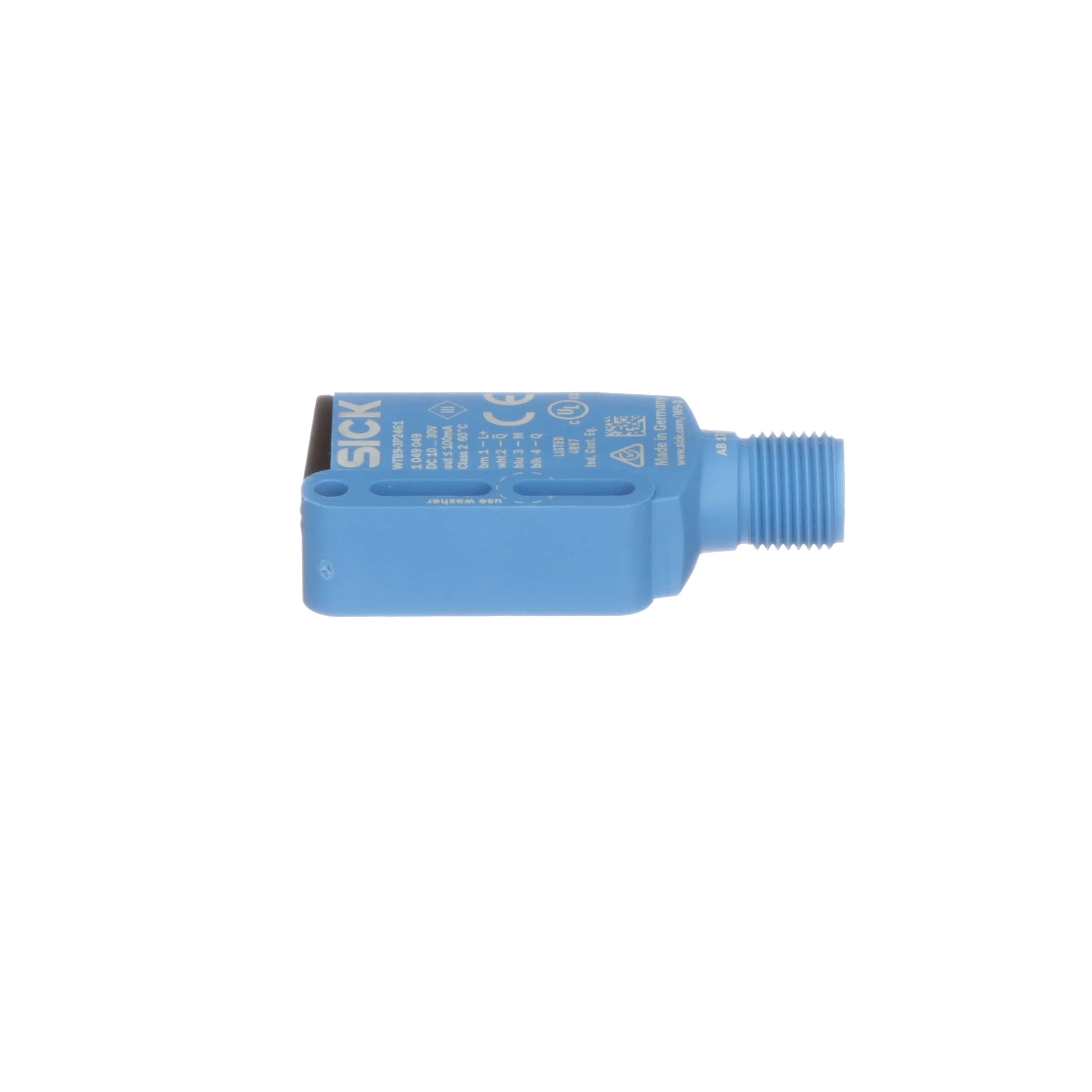

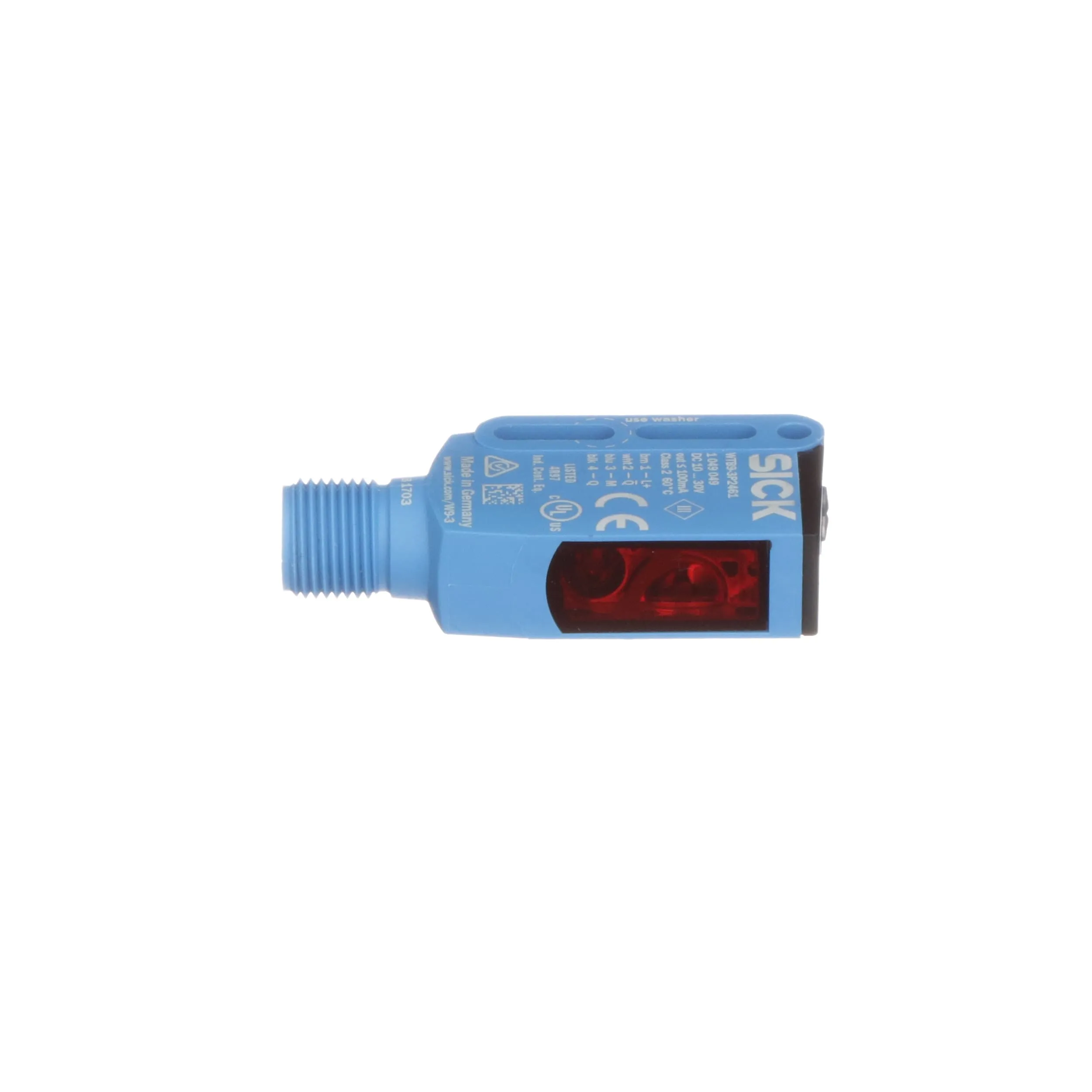

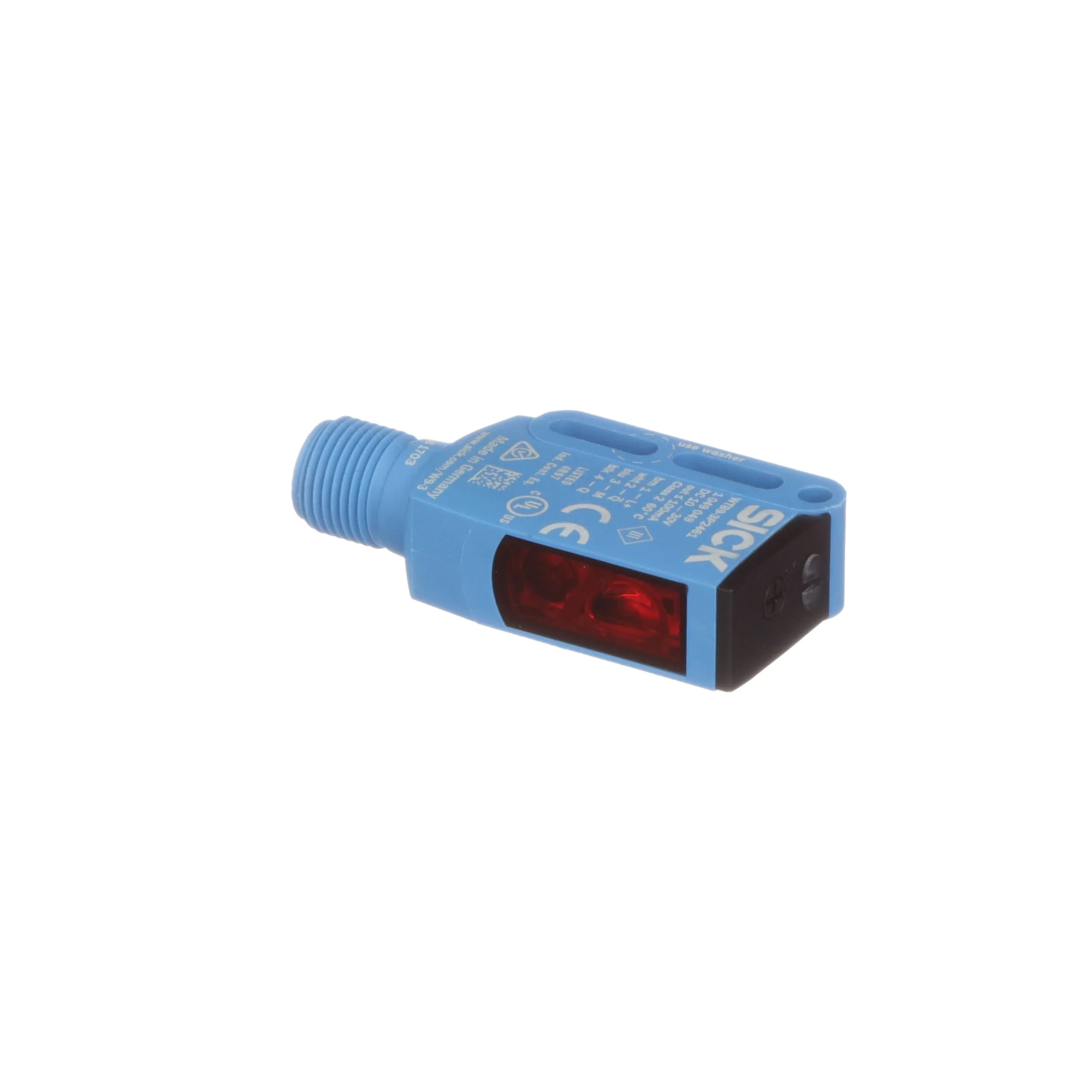

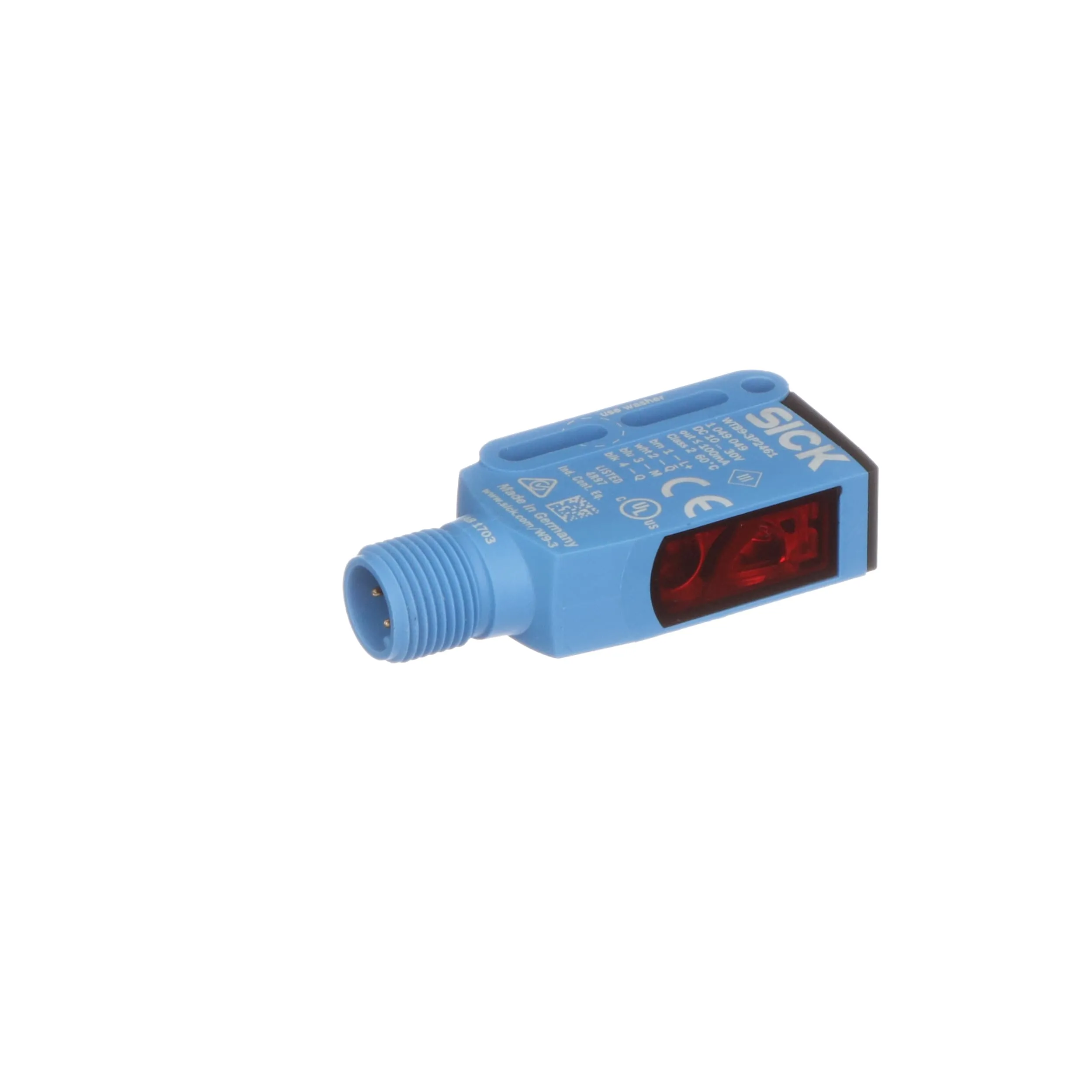

The W9-3 sensors feature a compact, rugged housing made from VISTAL™, offers an outstanding mechanical robustness, Plus, proprietary optic and OES3 ASIC technology provides best-in-class sensing performance. The W9-3 also includes unique connectivity options, mounting variability and optical specifications, making it the perfect solution for challenging automation applications. Add this advantage to your machine.
Features
