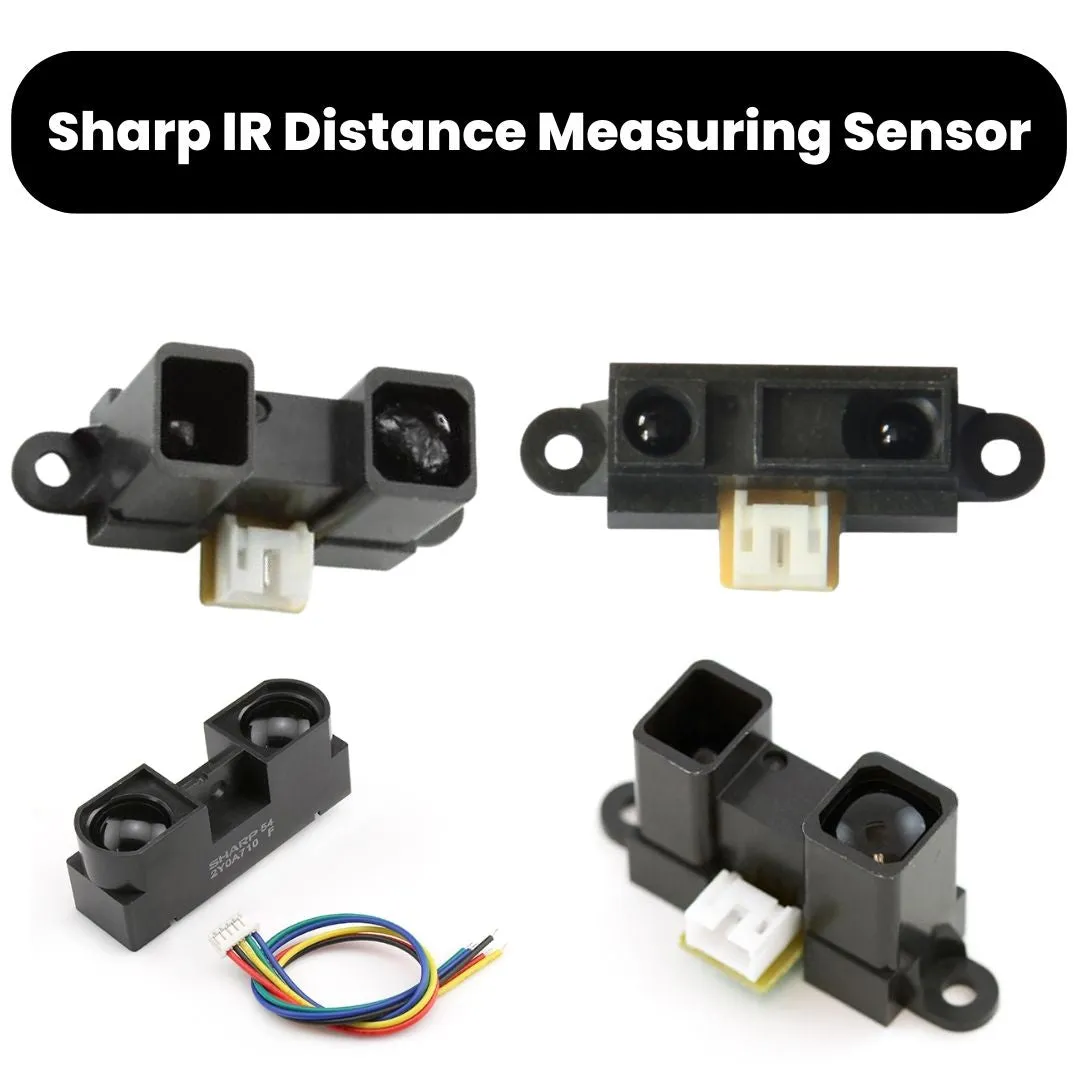

INFRARED  ANALOG RANGE FINDER SENSOR for Precise Distance Measurement and Obstacle Detection in Robotics, Automation, and Educational Projects

The SHARP distance sensors are highly favored for projects needing accurate distance measurements. Offering a cost-effective alternative to sonar rangefinders, these IR sensors deliver superior performance compared to other IR sensors. They are easy to interface with most microcontrollers: the single analog output can be connected to an analog-to-digital converter for distance measurements or to a comparator for threshold detection.

Feature:

• Operating Voltage: 4.5V to 5.5V
• Average Current Consumption: 30mA

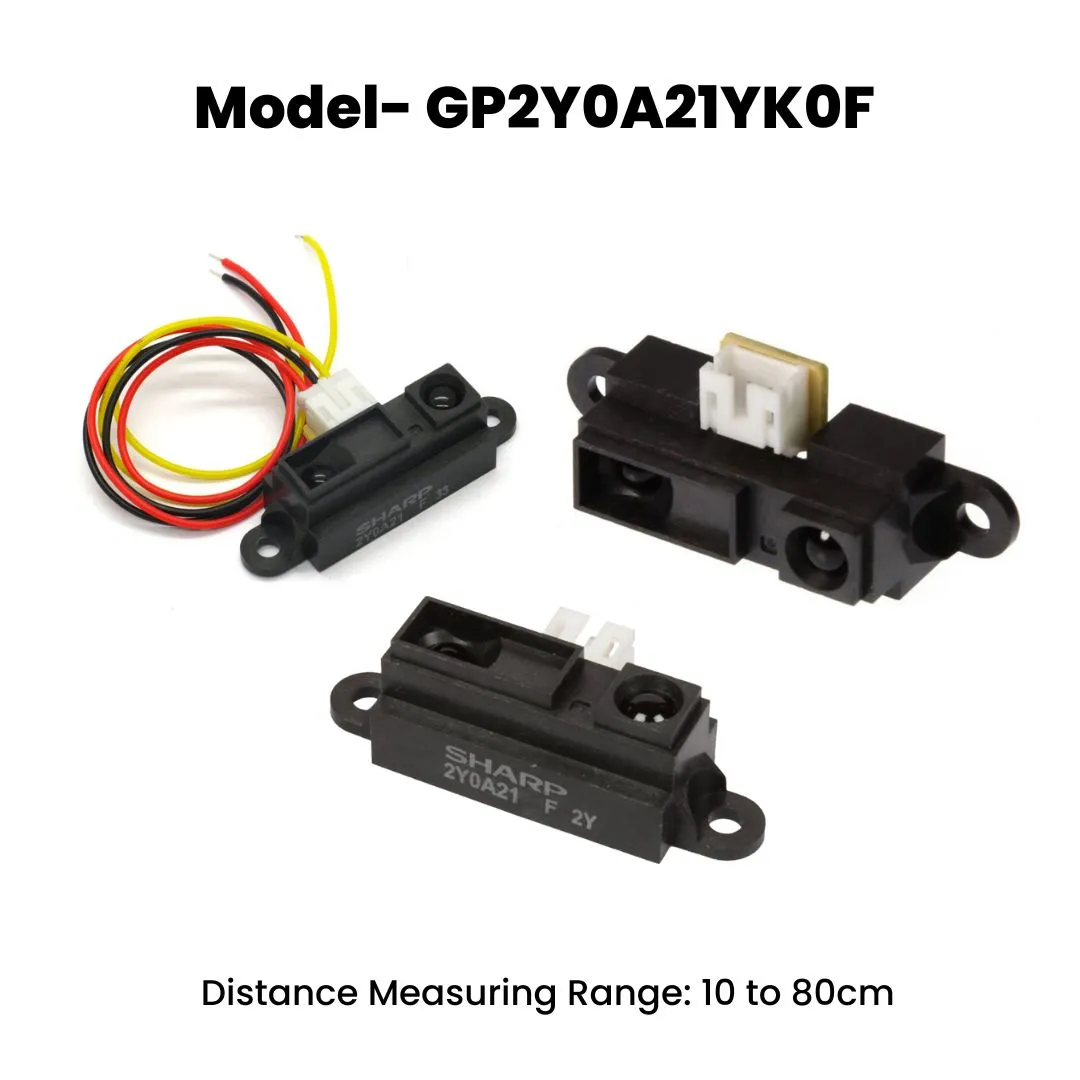

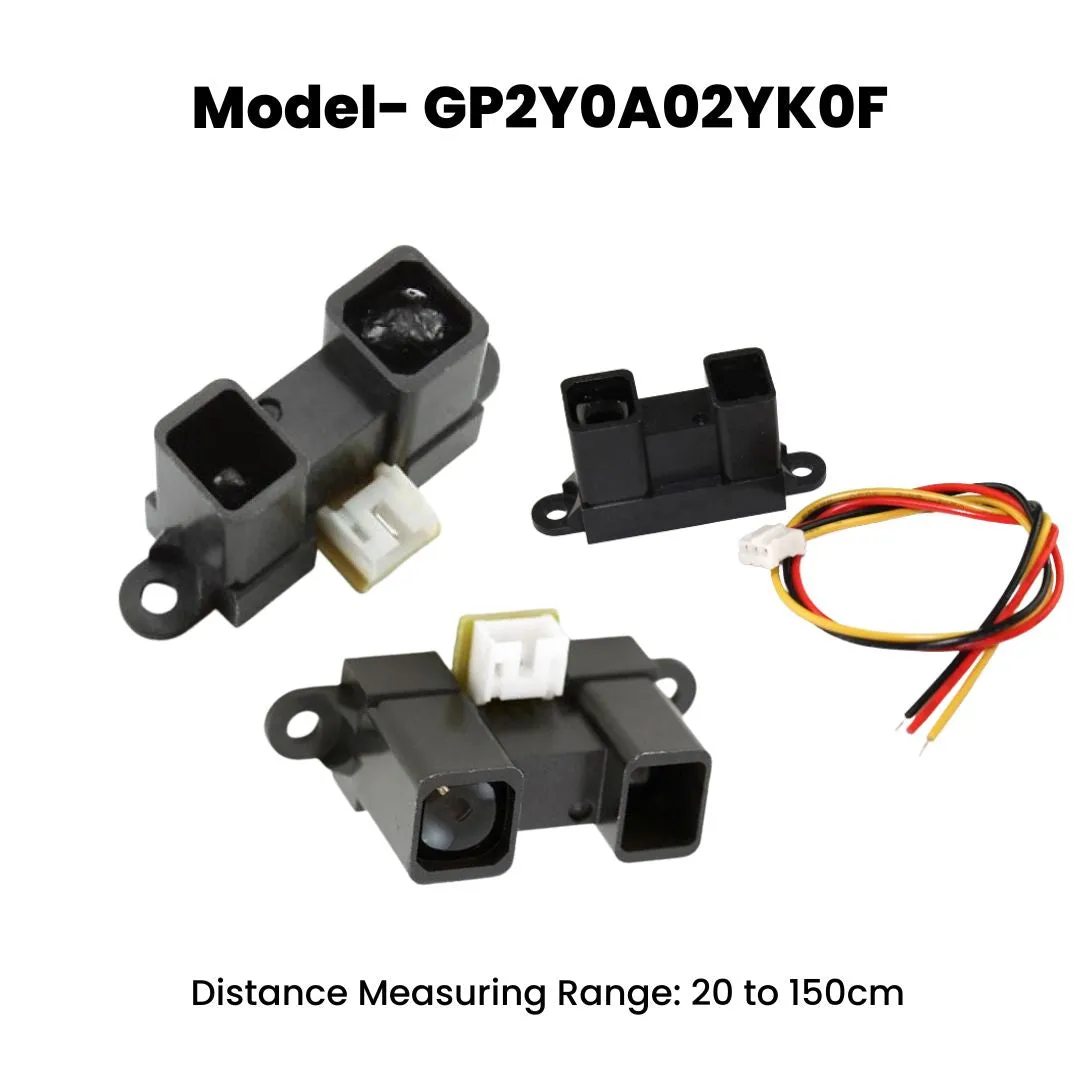

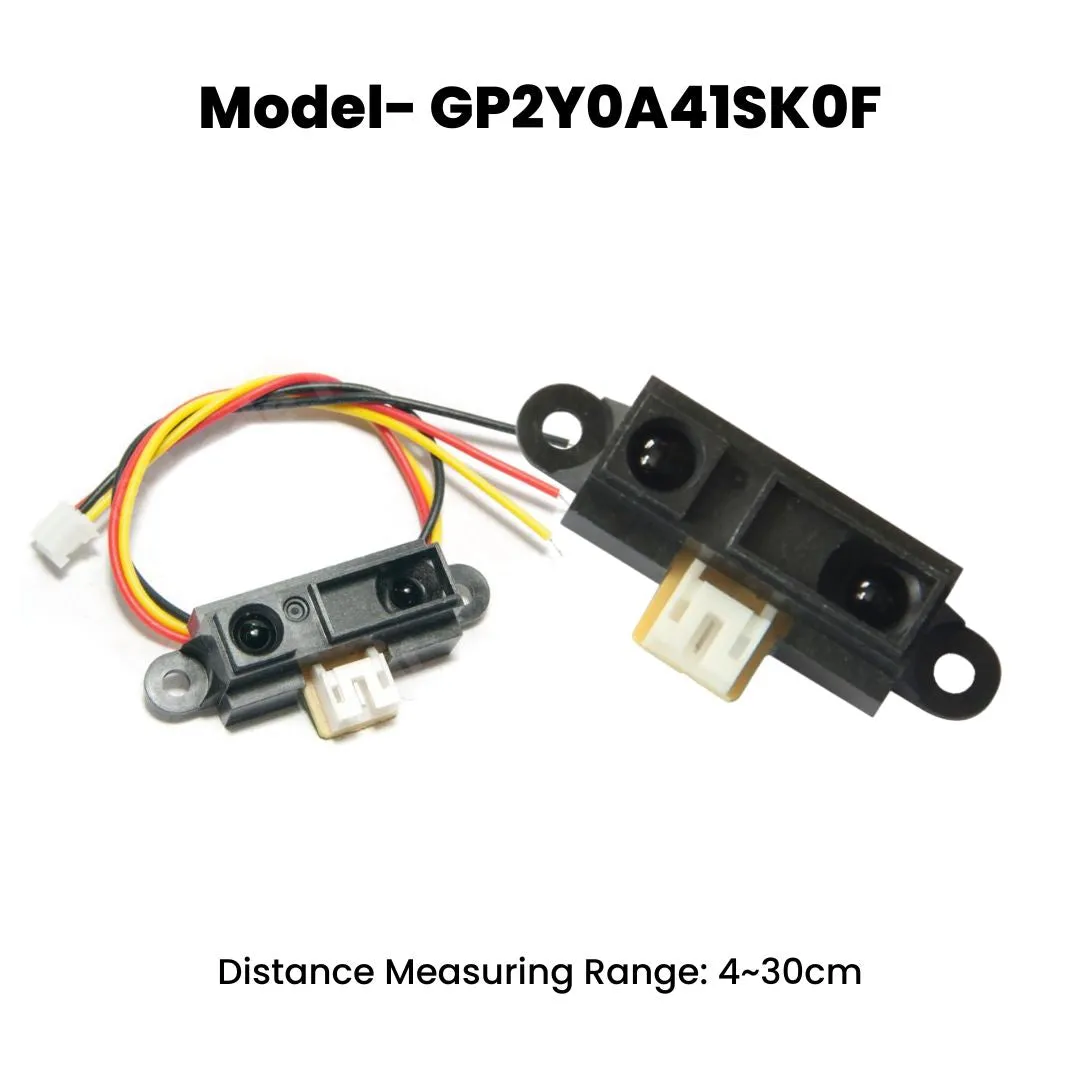

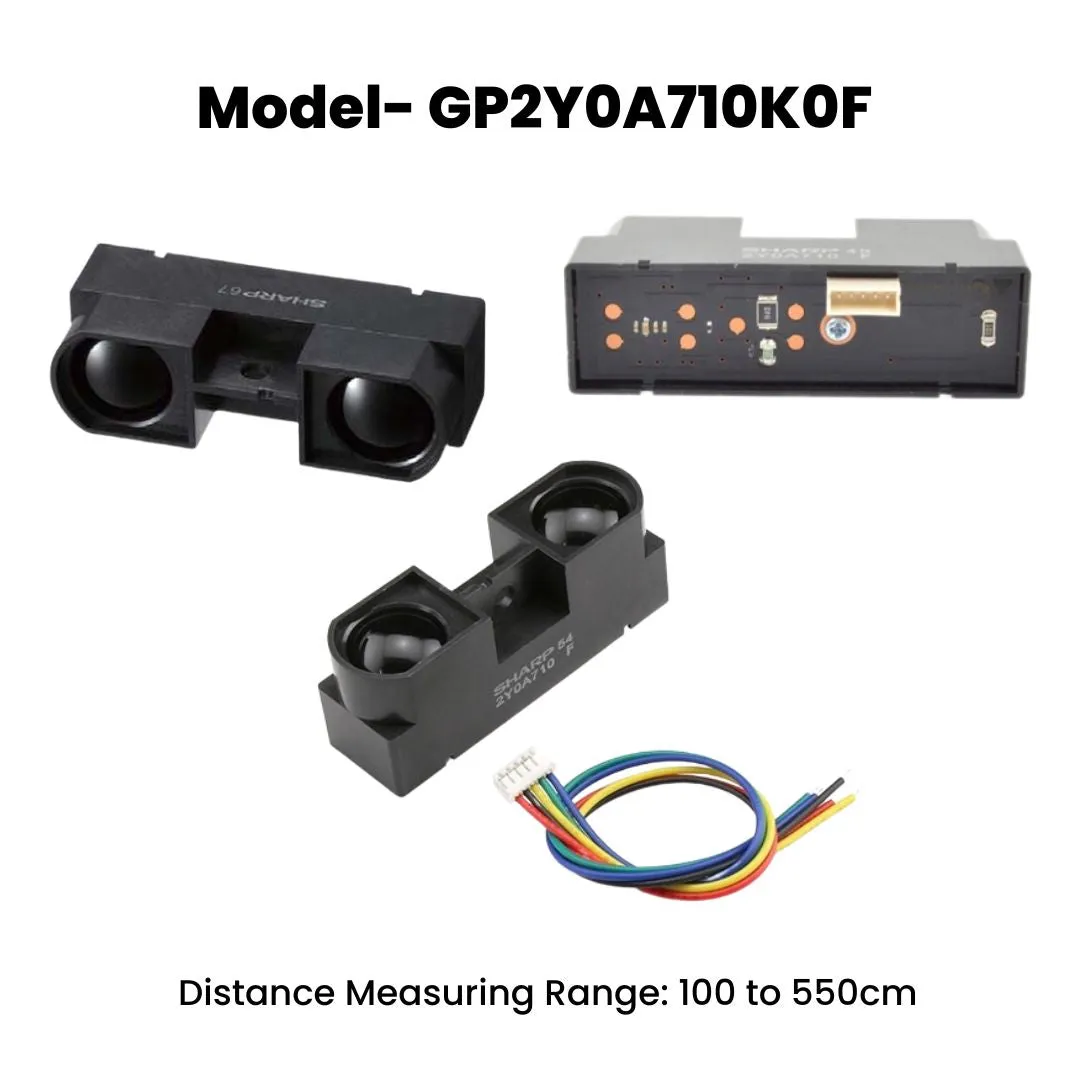

• Distance Measuring Range: 2-15cm / 4-30cm / 10-80cm / 20-150cm / 100-550cm (Selectable)
• Output Type: Analog voltage
• Output Voltage Differential Over Distance Range: 1.9V (typical)
