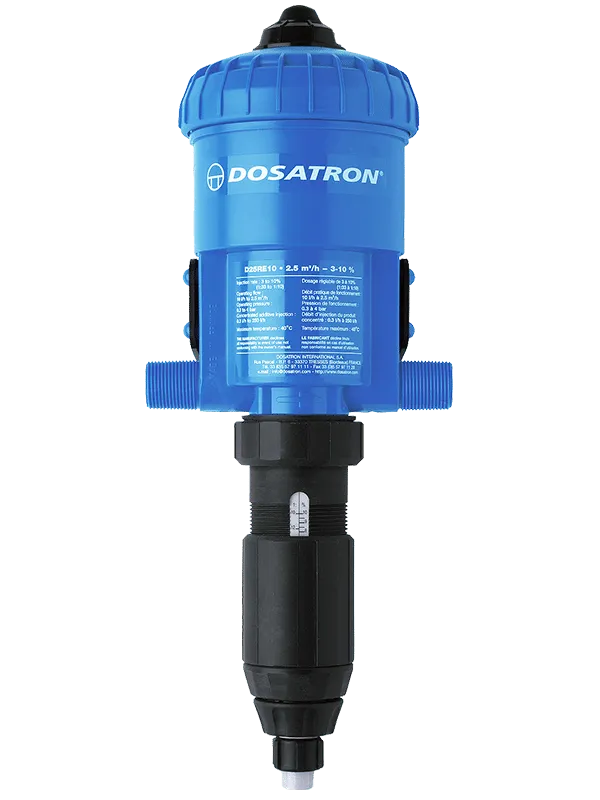

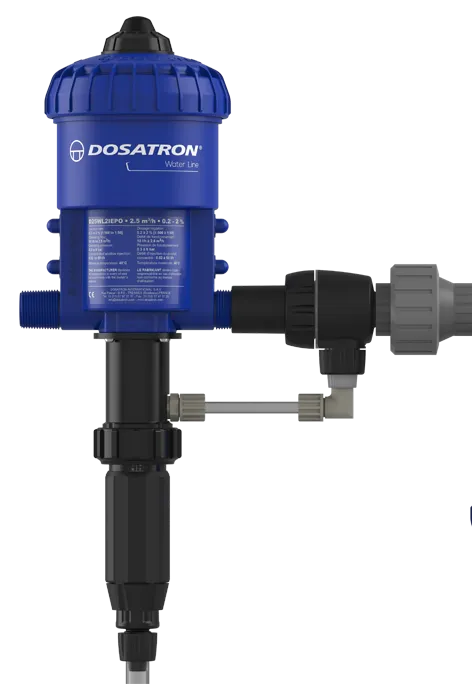

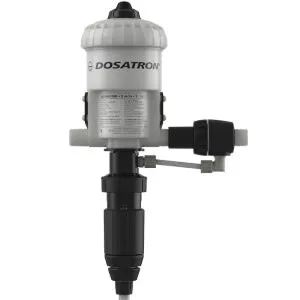

Dosatron D25RE10 3.00%-10% Chemical Dosing Pump with External Injection (4-34LPM)
The Dosatron D25RE10 with External Injection is tailored for applications that demand both high-concentration dosing and enhanced control over the injection process. With an adjustable dosing range of 3.00% to 10% and a flow rate of 4 to 34 liters per minute, this pump is ideal for precise chemical injection in processes like disinfection, industrial cleaning, and livestock treatment.
The external injection feature allows for direct mixing of the chemical into the water line, providing greater flexibility and accuracy in dosing. This non-electric pump is powered solely by water flow, making it an efficient and cost-effective choice for operations that require reliable performance without the need for an electrical power source. Built to handle the rigors of demanding environments, the D25RE10 with External Injection ensures consistent and proportional dosing, helping you maintain the highest standards of operation with ease.
SPECIFICATIONS
|
Dilution Range: |
1:33 to 1:10 (3% to 10%) |
|
Water Flow Range: |
0.05 to 8.8 GPM |
|
Operating Pressure Range: |
4.3 to 58 PSI |
|
Available Housing Materials: |
Polyacetal (Standard Blue) |
|
Other Options: |
Side-inject |
|
Dimensions: |
14” x 6 1/4” |
|
Weight: |
4 lbs |
|
Connection Size: |
3/4” NPT |
|
Maximum Temperature: |
104o F |
|
Included Accessories: |
4’ clear suction tube, strainer, weight, mounting bracket and quick start guide |
|
Recommended Accessories: |
200 mesh filter, check valve, pressure regulator, flow restrictor |
