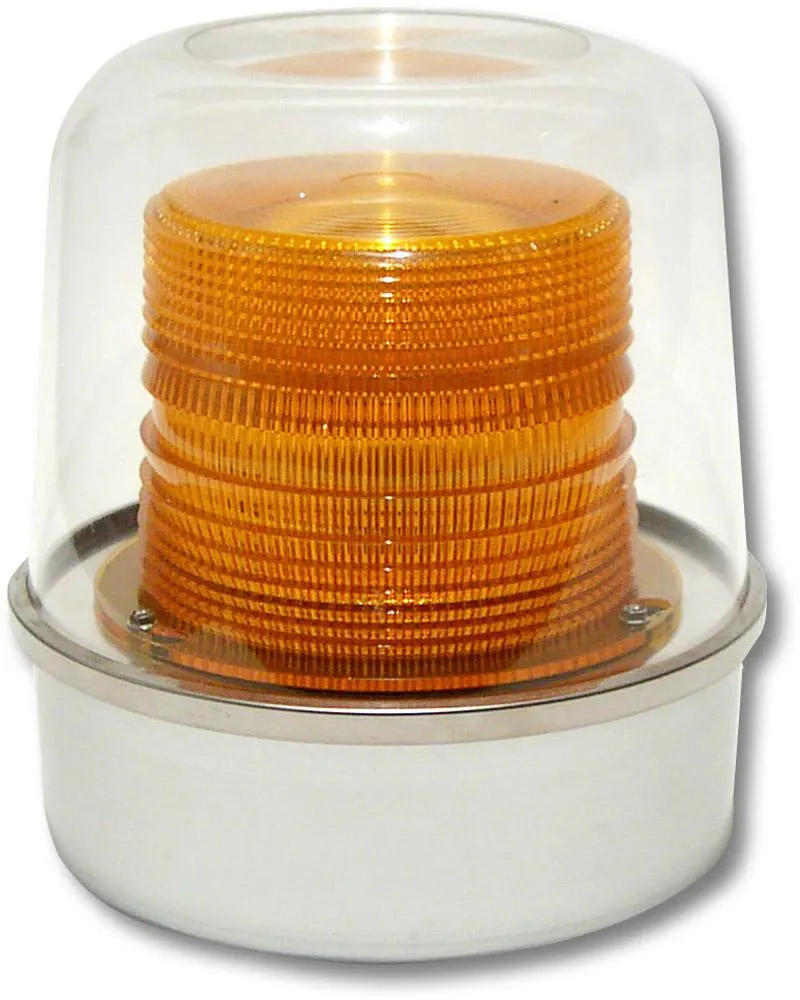

200BHL Series STAR Halo® LED Beacons
STAR Halo® LED technology is a patent pending, extremely low current draw, ultra high intensity LED light that exceeds the latest J845 and CA13 standards. The circuitry is designed with 24 customer selectable flash patterns, high/low intensity feature (Manual or Automatic), and S-Link System™ that allows synchronizing capabilities with other STAR LED products. All circuitry is fully encapsulated for increased weather and shock resistance.

Product Features:
24 Customer selectable flash patterns and two rotating patterns
S-LINK SYSTEM™ synchronizing capability with other STAR LED units
High/Low Intensity – Manual or Automatic
Extremely low current draw
Durable polycarbonate inner lens
Clear, smooth outer dome for easy cleaning and provides inner lens protection
Heavy-duty spun aluminum enclosed base with anodized finish
Completely encapsulated circuit for increased weather and shock resistance

Specifications:
Dimensions: 6-7/8” tall x 8-1/4” dia.
Voltage: 10 - 30V DC
Amp Draw: 0.6 Amps @ 12V DC, 0.3 Amps @ 24V DC
LED Colors: Amber, Blue, Red, White
Lens Colors: Amber, Blue, Clear, Green, Red


200BHL: SAE Class I, High Intensity LEDs, permanent mount or 3/4” pipe mount
